Gray cast iron, such as SAE J431 Grade G3000 and G3500, is a cornerstone material in high-quality brake drums. At TBP Auto, we leverage these industry-standard gray cast irons to deliver brake drums that excel in strength, durability, and performance.
Introduction
SAE J431 Grade G3000 and G3500 are automotive gray cast iron specifications widely used for brake drums. The “G3000” and “G3500” designations refer to a set of chemical and mechanical standards for the gray iron casting. In practical terms, these are classes of gray iron known for their balanced combination of strength, hardness, and thermal stability, making them ideal for braking components.
TBP Auto’s brake drums are all cast from high-grade gray iron that not only meets these SAE standards but is also produced with enhanced quality controls to ensure uniformity and reliability in every batch.
Understanding SAE J431 Grade G3000 & G3500 Cast Irons
These materials contain carbon and silicon in levels high enough to form graphite flakes within an iron matrix – the defining feature of gray cast iron. Such microscopic graphite flakes give them remarkable vibration damping and heat dissipation characteristics, while the iron matrix provides the strength needed to endure heavy loads.
For manufacturers and fleet operators alike, the SAE J431 G3000 and G3500 standard ensures a consistent quality benchmark. Brake drums made from these specific grades of cast iron meet strict criteria for chemical composition, hardness, and mechanical properties.
G3000 & G3500 Gray Cast Iron Chemical Composition
The performance of these cast iron grades starts with a carefully balanced chemical composition. Each element in the alloy plays a role in achieving the right microstructure and properties for brake drums.

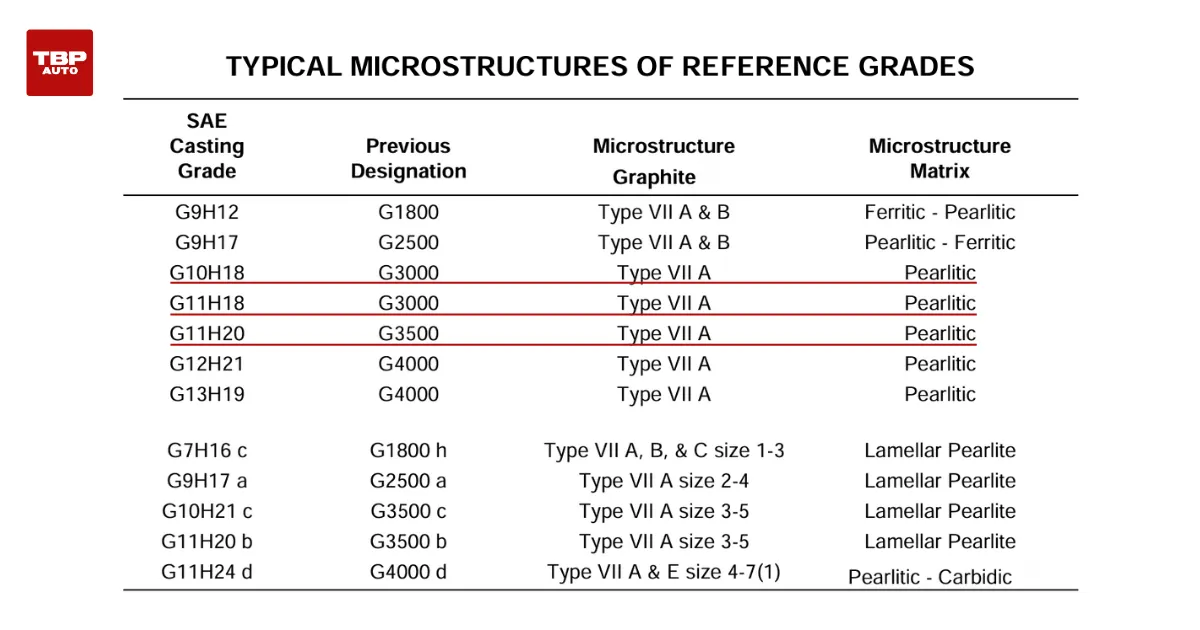

The relatively high carbon and silicon content produces a matrix that is predominantly pearlitic with well-distributed graphite flakes. This gray cast iron microstructure is key to the material’s performance: the pearlite (a hard mixture of iron and iron carbide) provides strength and wear resistance, while the graphite acts as a natural lubricant and vibration dampener.
Plus, the levels of phosphorus and sulfur are kept low and in tight control – low phosphorus prevents brittleness, and controlled sulfur (usually balanced with manganese) avoids harmful iron sulfide while forming manganese sulfides that enhance machinability.
Overall, this chemistry yields cast iron that is easy to cast and machine into complex brake drum shapes without cracks or casting defects and that has the internal structure needed for durability. The molten iron fills brake drum molds readily (thanks to silicon improving fluidity) and solidifies into a sound casting with minimal shrinkage issues.

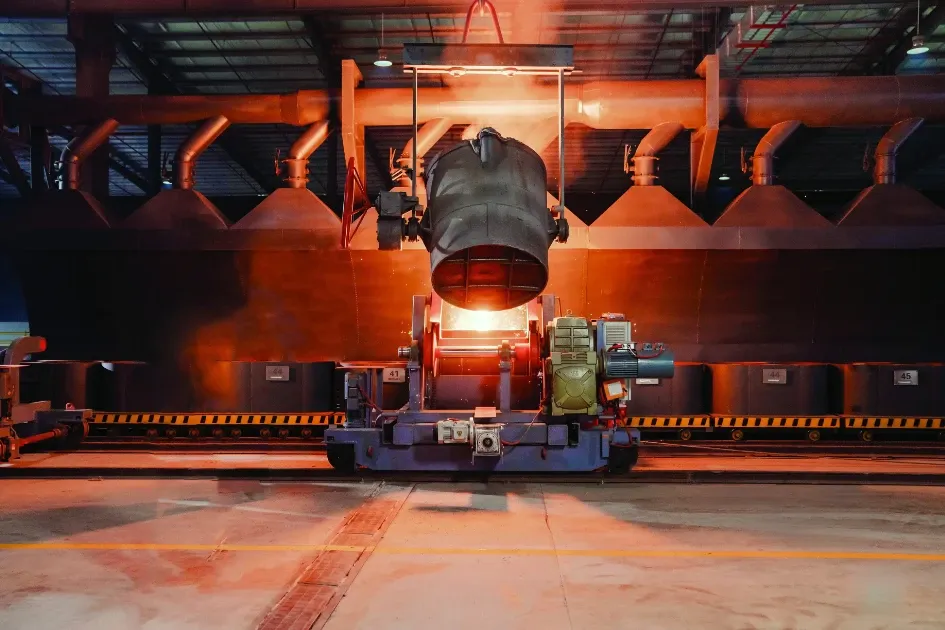

For TBP Auto, maintaining these composition ranges is critical – our foundry carefully monitors the carbon equivalent and alloy levels in every stage of the gray iron casting process. By doing so, we ensure our products have the optimal structure before they even hit the machining line. The result is a material foundation that supports superior brake drum performance from the inside out.
Mechanical Properties and Performance of G3000 & G3500
Chemical composition is only half the story – the true value of these cast irons is realized in their mechanical and physical properties. They are engineered to withstand the demanding conditions brake drums face daily: extreme heat from friction, rapid cooling, heavy mechanical loads, and constant vibration.
Let’s explore the key G3000 and G3500 gray cast iron properties and what they mean for brake drum performance:
Due to the high tensile strength, the final brake drum can handle the substantial stresses during braking. Each time a truck slows down, tremendous forces try to expand the drum; the cast iron’s sturdy matrix ensures the drum holds its shape and integrity.
The hardness in the 187–255 Brinell range gives an excellent balance: they’re hard enough to resist scoring, abrasion, and wear from the brake shoes, yet not so hard that they become brittle. This is crucial – an overly hard drum could crack under sudden shocks or thermal stress, while an overly soft drum would wear out too quickly. G3000 and G3500 hit the sweet spot, yielding drums that last for many miles under normal lining friction without wear-related failures.
Another key characteristic of gray cast iron is its thermal management capability. Here, the thermal conductivity is significantly higher than many steel alloys, which means it can conduct heat away from the brake interface efficiently. For drivers, this translates to more stable brake performance – the drum can absorb and disperse the heat from braking, reducing the risk of brake fade (loss of braking effectiveness due to overheating) during long descents or stop-and-go traffic.
Additionally, gray iron’s thermal expansion behavior is well-suited for brake drums, minimizing distortion as the drum heats up and cools down. This dimensional stability helps maintain consistent clearances and contact with the brake shoes, so braking remains even and predictable.
Perhaps the most unsung hero of G3000 and G3500 cast iron is its vibration damping capacity. Thanks to those graphite flakes embedded in the iron, the irons can absorb and dissipate vibrational energy much better than steels. In practical terms, a brake drum made of gray iron will tend to reduce brake squeal and noise. The material naturally deadens the high-frequency vibrations that can occur during braking. For fleet operators focused on driver comfort and maintenance, this means fewer noise complaints and potentially less wear on components (since vibration can accelerate fatigue).
Why G3000 & G3500 Cast Iron are Ideal for Brake Drums
Combining the chemical and mechanical properties above, SAE J431 G3000 and G3500 grade cast irons are ideal materials for brake drums, especially in commercial vehicles. In brake drum applications, gray iron has an excellent set of advantages:
- High Strength and Structural Integrity: These materials ensure the brake drums can handle heavy loads and sudden stops without cracking or failure. Such reliability is vital for safety in trucks that carry significant cargo weight or navigate challenging terrain.
- Superior Heat Handling: G3000 and G3500’s thermal conductivity and stability mean that drums run cooler and are less prone to warping. Even during repeated braking (such as mountain descents or city driving), TBP Auto’s drums maintain their shape and effectiveness, protecting against brake fade and warping that could compromise braking performance.
- Excellent Wear Resistance: The controlled hardness gives our brake drums a tough wearing surface. They resist grooves and wear patterns, which in turn protects brake linings and keeps maintenance intervals longer. Fleet owners benefit from longer drum and lining life, reducing downtime and replacement costs.
- Noise and Vibration Reduction: Gray cast iron is known for damping vibrations inherently. TBP brake drums help minimize annoying brake squeals and vibrations. This not only improves driver comfort and confidence but also indicates that the drum and brake system are functioning harmoniously without undue resonance or chatter.
- Manufacturing Precision and Consistency: From a production standpoint, these cast irons have excellent castability and machinability. They fill complex drum molds evenly and cool without excessive stress, allowing our foundry to produce drums with uniform quality. Moreover, the materials machine cleanly, enabling precise boring of mounting holes and braking surfaces. The result is perfectly fitting brake drums that are easy to install and balance.
- Proven Industry Standard: Many OEM (Original Equipment Manufacturer) drums are made of G3000 and G3500 gray iron, so TBP Auto drums are equivalent in material to the originals. We build on that foundation with our own strict quality controls, ensuring you get an OEM-comparable or superior part that meets all applicable safety and performance standards.
TBP Auto’s Commitment to Quality
At TBP Auto, material quality is a top priority. We understand that the performance of a brake drum begins at the material level. That’s why we have invested in state-of-the-art metallurgy practices to maximize the potential of SAE G3000 cast iron and G3500 cast iron.

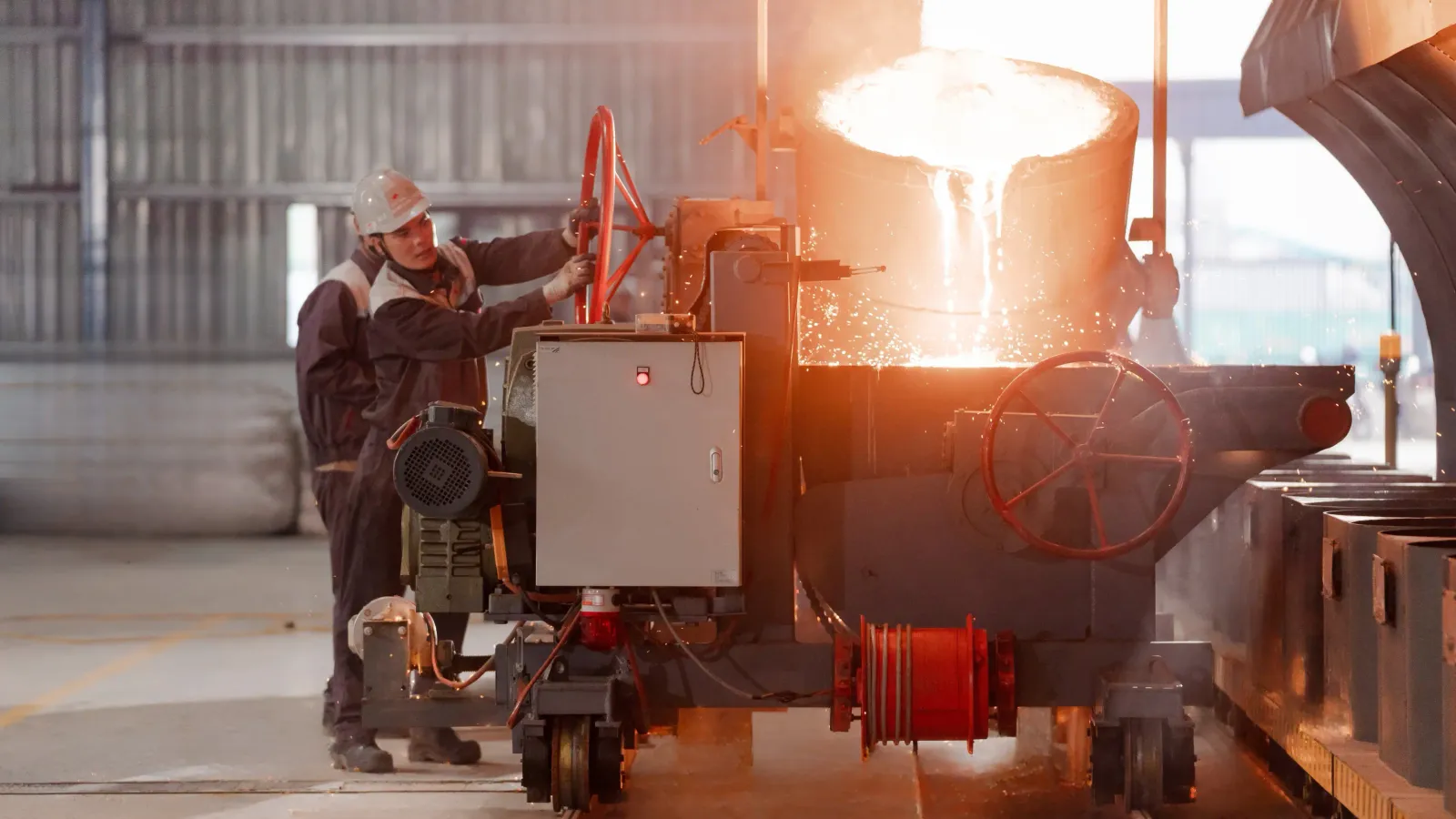

Our foundry experts carefully test each temperature of iron for chemical composition – carbon, silicon, and other elements are checked to be within the optimal ranges. We often target the upper end of the spec for strength and the sweet spot for carbon equivalent to achieve a fully pearlitic gray cast iron microstructure, giving our drums an extra edge in durability.
Beyond composition, TBP Auto’s manufacturing process includes rigorous quality checks for mechanical properties. Sample coupons from our castings are tested for tensile strength and hardness to verify they meet or exceed the standards. We also examine the microstructure under microscopes to ensure the graphite distribution and matrix are exactly as intended (free of anomalies like shrinkage or excess carbides).
Equally important is how our use of cast iron supports TBP Auto’s broader mission. Our company ethos is built around safety, reliability, and value. By using such trusted materials, we align our products with global automotive standards and demonstrate our commitment to providing only the best to our customers.
Conclusion
SAE J431 Grade G3000 cast iron and G3500 cast iron are more than just a specification – they’re the backbone of TBP Auto’s brake drum quality. Their balanced chemistry and properties give our brake drums the strength to carry heavy loads, the heat management to endure repeated braking, and the durability to last for the long haul.
For TBP Auto’s customers and partners, the use of such reliable materials translates into confidence. It reinforces our brand’s promise of being a trusted parts provider for commercial vehicles by ensuring each drum we produce is built on a foundation of metallurgical excellence. In choosing TBP Auto brake drums, you are choosing a product that embodies our dedication to quality – from the material science all the way to the final machining and finish. Our commitment to this superior material is just one of the ways we strive to keep you moving safely and stopping confidently.
