Introduction
At TBP Auto, quality is more than a checkbox – it’s the backbone of our reputation, and that promise doesn’t start at the shipping dock. It begins deep inside our facility, with a comprehensive in-house testing process designed to validate each drum at every stage of production. This article takes you behind the scenes of TBP Auto’s testing journey – where cutting-edge equipment, seasoned expertise, and tight process control converge to ensure the performance of our products every time.

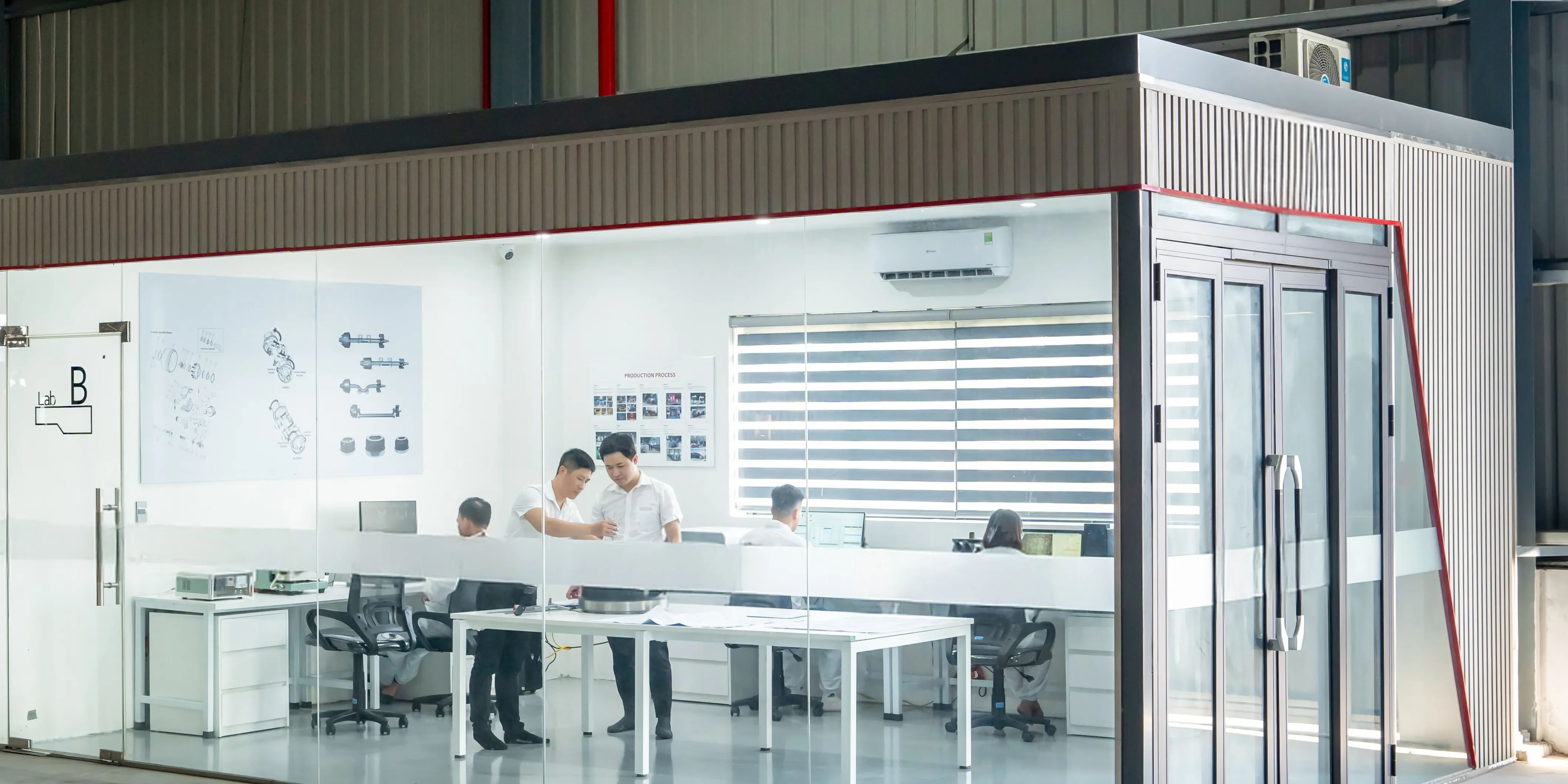

TBP Auto’s State-of-the-Art Testing Facility & Equipment
Our testing philosophy is simple: don’t outsource quality, build it in. At TBP Auto’s modern production plant in Vietnam, our testing facilities are seamlessly integrated with manufacturing. That means our engineers, technicians, and QA specialists work side-by-side on the floor, with fast access to data, samples, and feedback.
Here’s a closer look at the key equipment that powers our quality assurance:

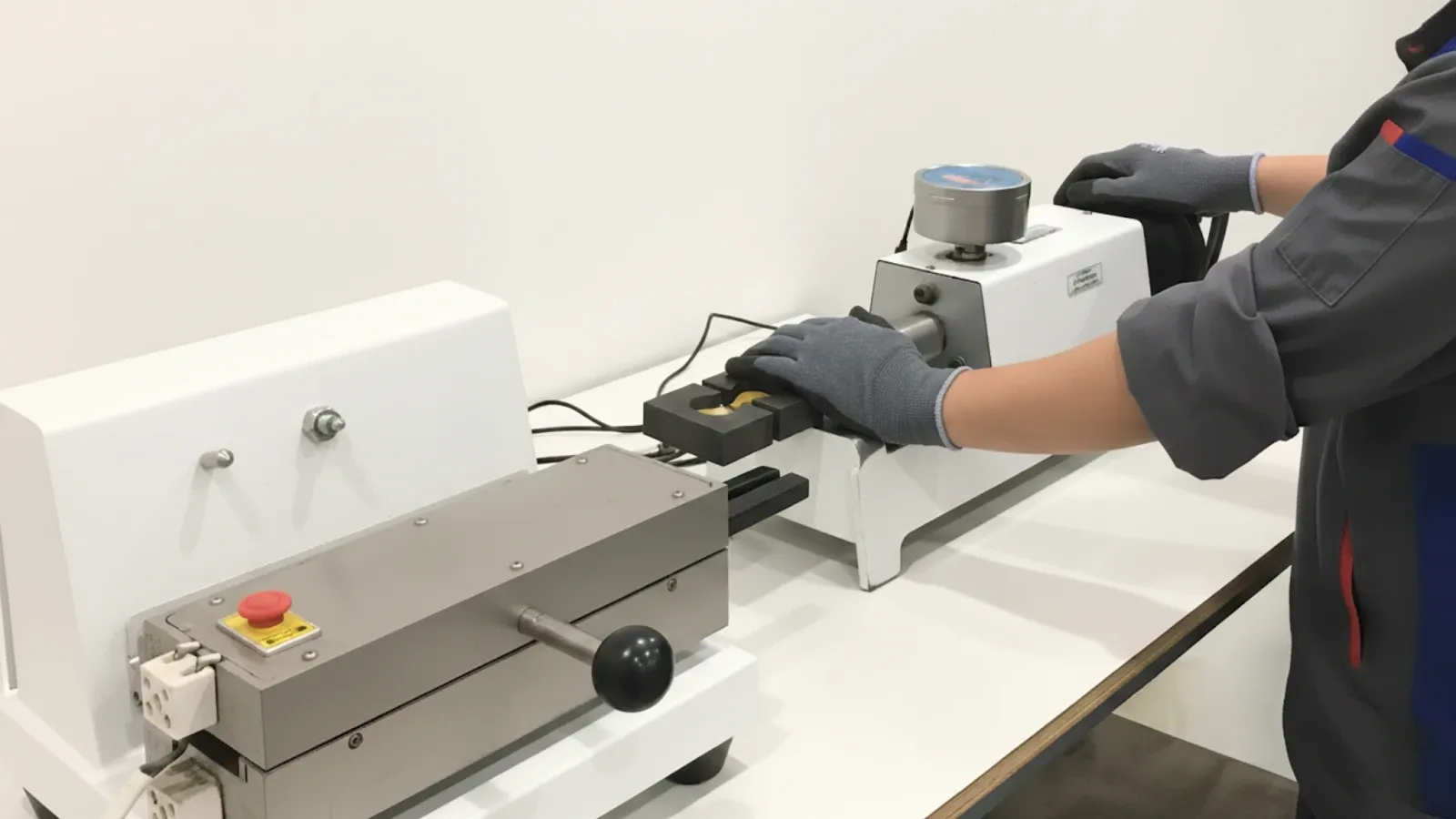

Sand Testing Station
The quality of the sand used in our mold creation has a direct impact on casting integrity. That’s why we batch test our resin-coated sand for tensile strength. Strong, consistent sand molds lead to clean castings with fewer defects and fewer surprises during machining.

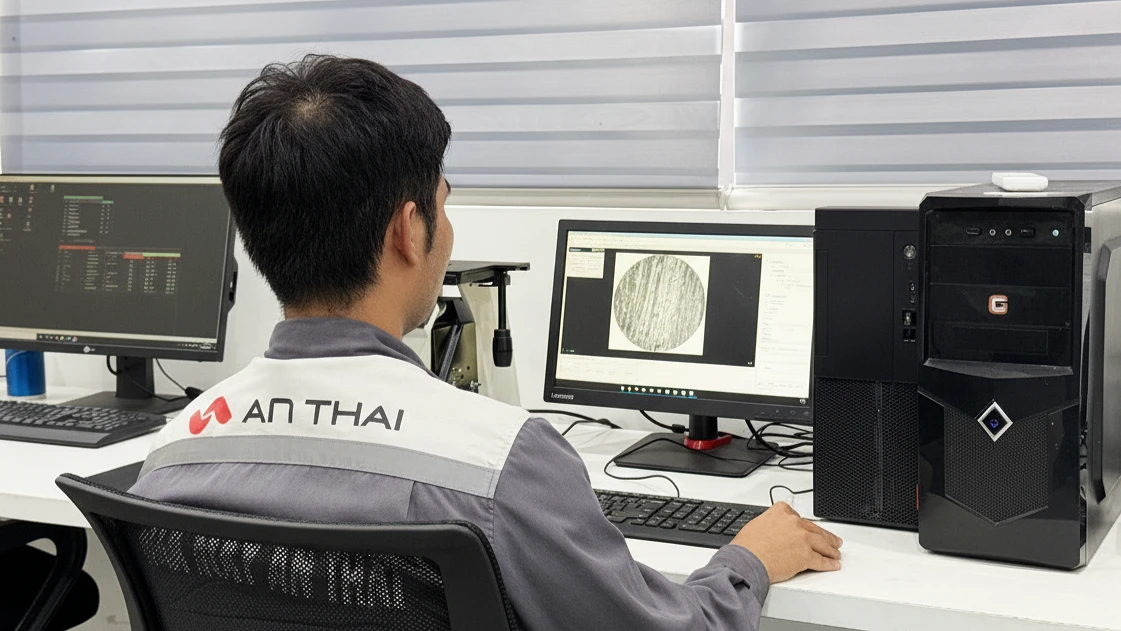

Metallurgical Testing Equipment
Spectrographic analyzers perform chemical composition analysis of the iron to ensure each batch meets the Grade G3500 chemistry per SAE J431 (the standard for automotive gray iron). In our lab, technicians also conduct metallographic examinations under microscopes to verify the microstructure (graphite form, size, and matrix) is optimal for strength and heat dissipation.
>>> Watch more: TBP Auto Factory Tour – Inside Vietnam’s Largest Brake Drum Factory
Precision Metrology Tools
Dimensional accuracy is critical for brake drums to fit and function properly. TBP’s lab is equipped with gauges to verify all critical dimensions (diameter, width, bolt circle, pilot hole, etc.) against design specs. Our technicians use digital calipers, micrometers, round dial gauges, and other manual gauges for detailed checks. This high-precision equipment confirms that each drum’s geometry falls within tight tolerances, preventing any fitment or alignment issues in service.

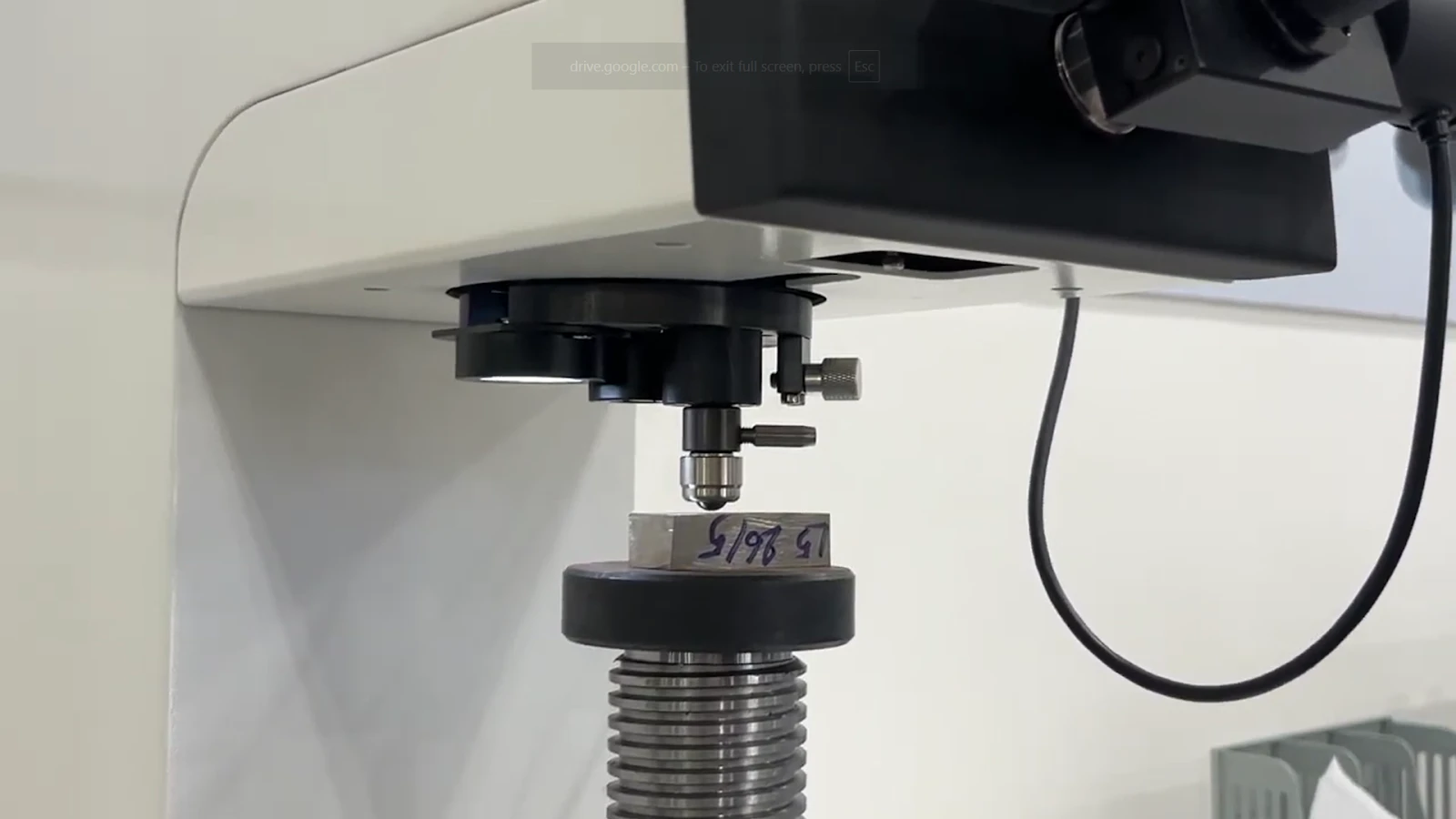

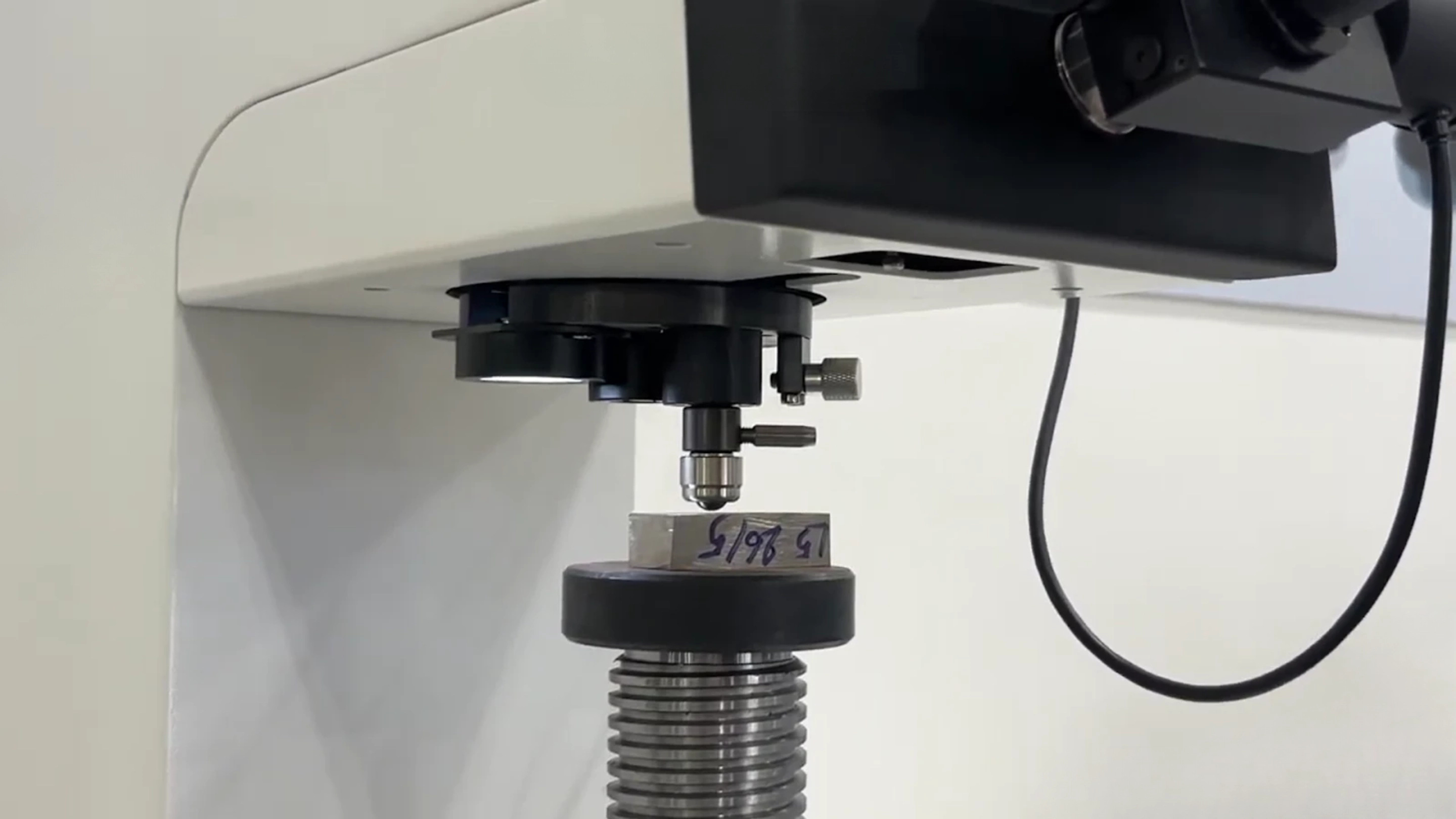

Hardness & Mechanical Testing Equipment
To meet SAE J431 Grade G3500 requirements, TBP measures the hardness and strength of its cast iron. The lab utilizes hardness testing machines to ensure the drum’s material is neither too soft nor too brittle. Proper hardness correlates with tensile strength (≥ 35,000 psi) and ensures the drum can withstand wear without cracking.
TBP also conducts mechanical tests on sample coupons from each batch – such as tensile pull tests – to verify that the iron’s mechanical properties meet or exceed OEM and SAE specifications. These checks give confidence that the drums have the necessary durability and toughness.

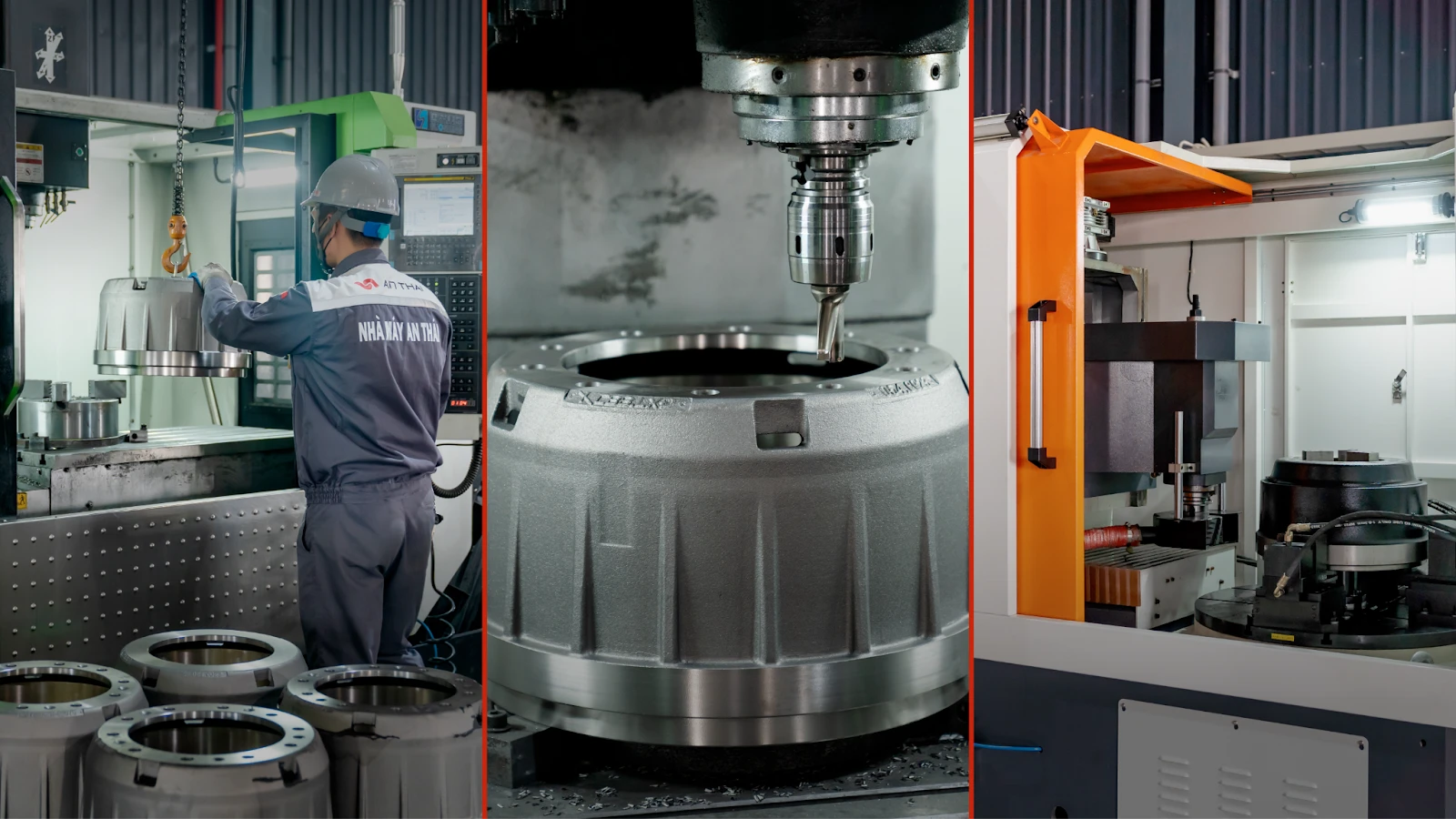

Dynamic Balancing & CNC Correction
One standout feature of TBP’s facility is its dynamic balancing machines paired with CNC milling stations. Every brake drum is individually spun at high speed to detect any imbalance, simulating real-world rotation. If an imbalance is found, a precise CNC milling process removes just the right amount of material from the heavy spot, correcting the weight distribution to within strict tolerances.
TBP Auto’s method of dynamic machine balancing brake drums with precision milling is a standardized process for every drum, ensuring smooth, vibration-free performance. The result is a drum balanced to OEM standards (no shudder or uneven wear).
>>> Read more: OEM Quality Standards in TBP Auto's Brake Drum Manufacturing
Step-by-Step: The TBP Brake Drum Testing Process
Let’s walk through how testing is embedded at each stage of our brake drum production process – from foundry to final balance.
Step 1: Sand Mold Validation
At TBP Auto, every brake drum begins with carefully controlled mold preparation. We use high-quality resin-coated sand sourced from vetted suppliers. Each batch undergoes tensile strength testing to confirm the bonding strength is within our set range – ensuring it can withstand the pressure of molten iron without deformation or cracking.
This testing is essential for our “one-time precise molding” process, which produces clean, defect-free castings with tight dimensional tolerances. Well-formed molds help minimize machining time and reduce casting-related variation, setting a strong foundation for consistent brake drum quality.

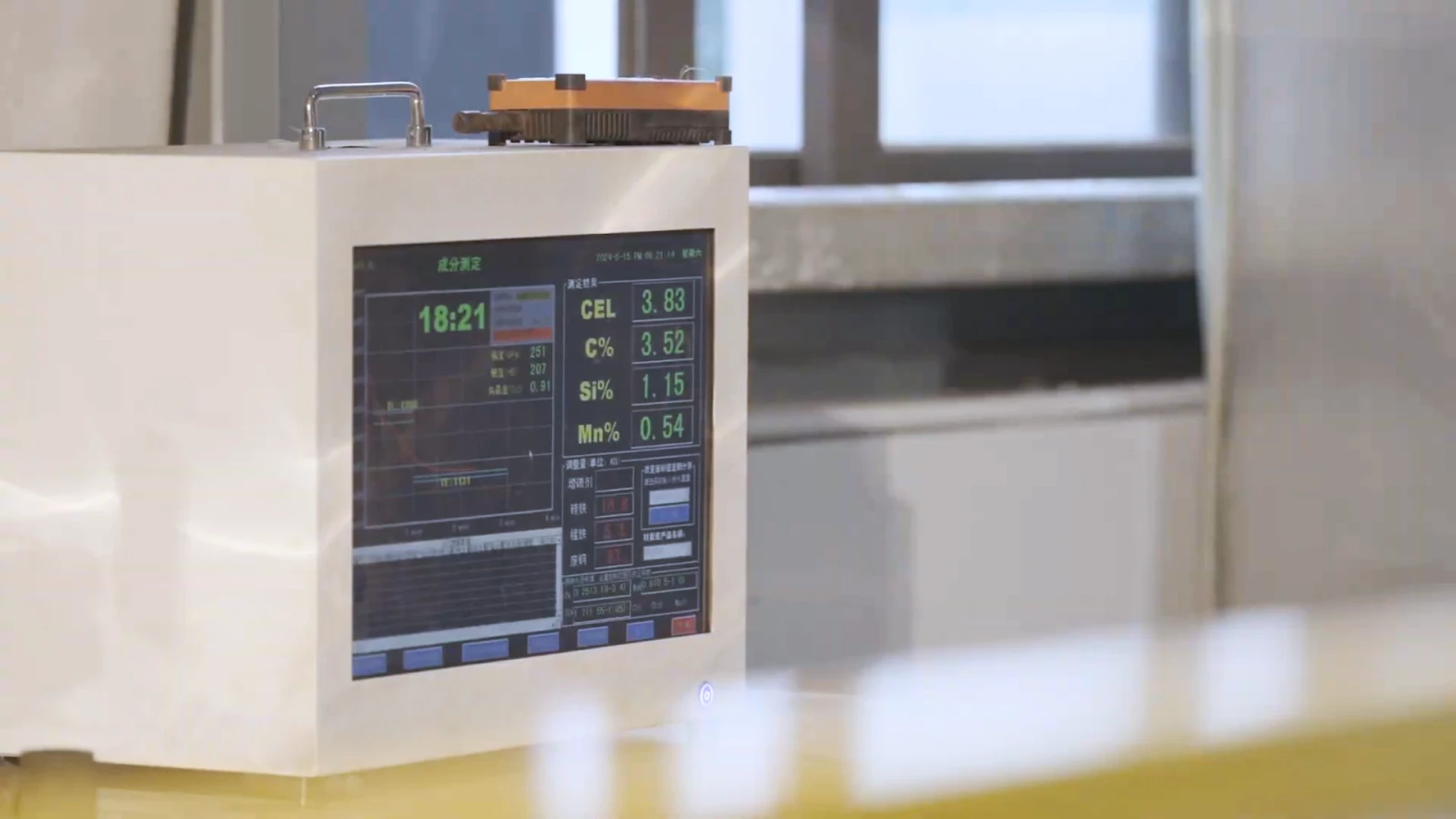

Step 2: Molten Metal Composition Check
Before any metal is poured into molds, we perform rigorous spectrochemical analysis of the molten iron. Our technicians extract samples from the furnace and run them through an optical emission spectrometer, which instantly provides a breakdown of elements like carbon, silicon, manganese, and phosphorus. We compare these results to our internal specification for gray cast iron, tuned to meet Grade G3500+ requirements under SAE J431. The spectrometer helps us fine-tune the melt by adding alloys as needed, adjusting composition in real time. This precision ensures that the final casting achieves the mechanical and microstructural requirements for safe and durable brake performance.
Step 3: Rough Casting Inspection
Before machining, QA inspectors perform visual checks on each casting. They identify surface defects such as cold shuts, sand fusion, and cracks, and verify key as-cast features including bolt boss locations and rib formations.
Step 4: Hardness Sampling
We perform hardness testing on sample drums using the Brinell method. Our target hardness range is approximately 187–255 HB, which strikes the right balance between wear resistance and impact toughness. Consistency here confirms that our metallurgy and cooling processes are stable. Out-of-spec readings trigger immediate review and root-cause analysis.

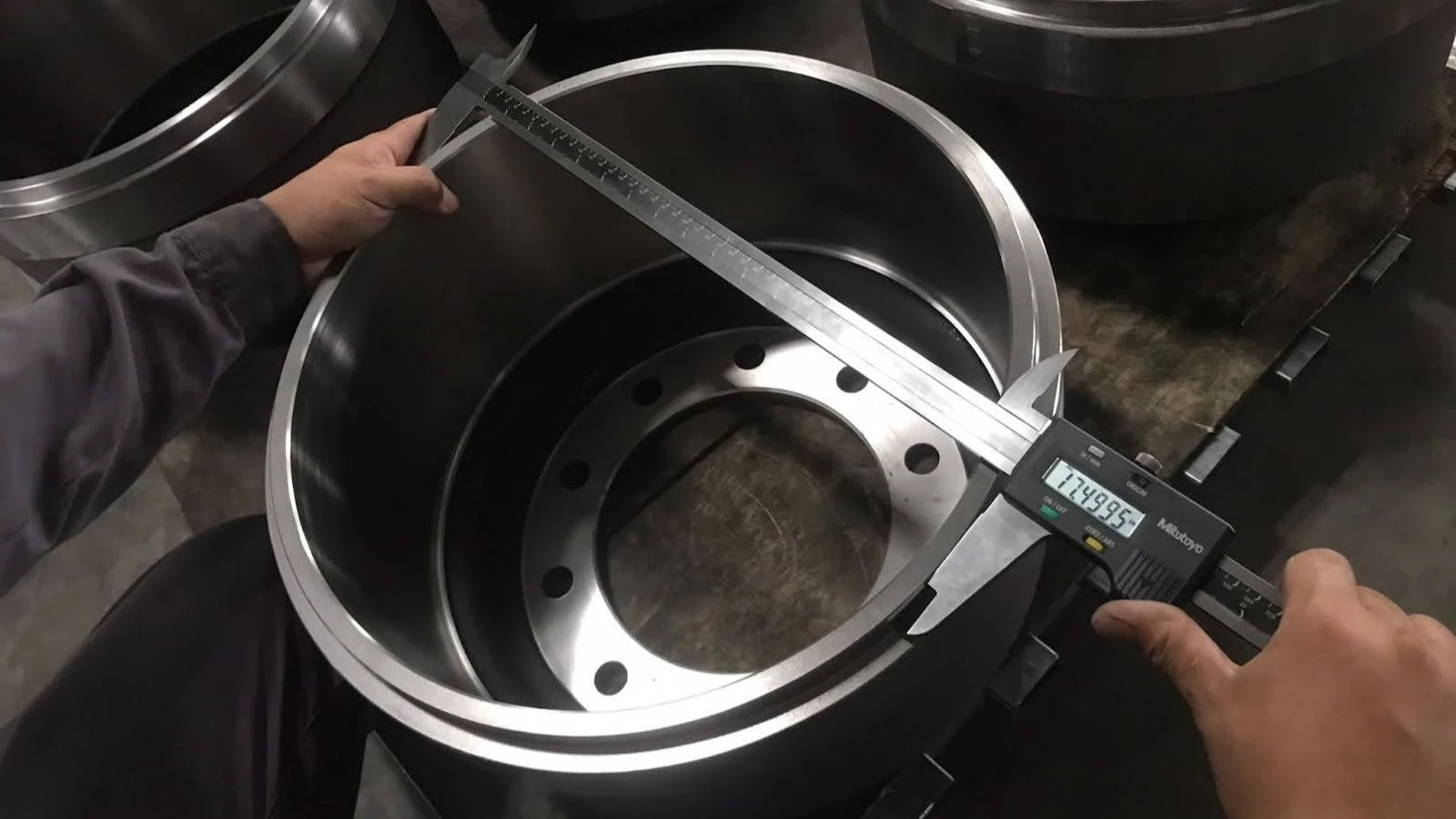

Step 5: Dimensional Accuracy Inspection
QC inspectors use digital calipers, go/no-go gauges, and ring gauges for rapid dimensional verification. They measure total run-out by mounting the drum on a spindle and using a dial indicator, typically keeping run-out below 0.1 mm. Between production stages, our technicians use calibrated tools such as micrometers and bore gauges to confirm accuracy.
These checks verify that the drum mounts squarely and operates consistently, helping prevent uneven shoe wear or brake pulsation.
Step 6: Dynamic Balancing & Correction
Even a slight imbalance in a heavy-duty brake drum can create vibration at highway speeds. After machining, every drum is mounted on a high-speed dynamic balancer that detects unbalanced mass as low as a few grams. The system calculates the exact correction needed, and a CNC-controlled milling head removes material at a precise location on the drum’s outer flange.
Unlike clip-on or welded counterweights, this method is permanent and maintenance-free. Each drum is verified after correction to ensure balance falls within our spec, typically below 1500 g·cm of residual imbalance. The result is a drum that spins true, improves brake feel, and extends the life of bearings, hubs, and shoes.
>>> Read more: TBP Auto’s Supreme Method of Dynamic Machine Balancing Brake Drums
Step 7: Final Inspection and Verification
Before packaging, every drum passes a final quality gate. Inspectors confirm surface quality, coating integrity, and traceability markings. Final visual checks look for burrs, scratches, or incomplete machining. For selected units, additional dimensional and run-out checks are repeated to validate consistency within the batch.
This stage also includes review of internal QC data – ensuring each drum has passed all critical checkpoints from spectrometer analysis to dynamic balance. Only drums that meet every standard are cleared for corrosion protection, oiling, and packaging. Traceability codes are recorded so each drum can be linked to its production batch and inspection history.
Step 8: Ongoing Sample Testing and Continuous Improvement
Beyond routine testing, TBP runs sample-based audits and long-term validation. Test results are analyzed by our engineering team to fine-tune metallurgy, mold design, and process parameters.
These validation efforts aren’t just for R&D – they directly feed into better day-to-day production. We believe real quality comes not just from catching problems, but from building a process that continuously learns and improves.
>>> Read more: TBP Auto 16.5" x 7" Brake Drum: Heavy-Duty Features, Specs & Application
Conclusion
At TBP Auto, testing isn’t just a final step. From the first handful of mold sand to the final balance check, we’re constantly verifying that every brake drum lives up to the expectations of OEMs, fleet operators, and distributors around the world.
Our investment in high-end equipment and disciplined quality systems is part of what sets us apart. But even more important is our focus on process integration: we build testing directly into production so issues are spotted and corrected in real time. So whether you’re installing TBP Auto’s brake drums on a regional delivery truck, a long-haul fleet vehicle, or an international passenger coach, you can trust that each one has been meticulously crafted and thoroughly tested for the journey ahead.
