At TBP Auto, we believe that precision in every step of manufacturing leads to reliable performance on the road – and one crucial step is dynamic machine balancing of brake drums.
Introduction
Properly balanced brake drums are essential for safety and durability, minimizing vibration, uneven wear, and noise. With this in mind, we at TBP approach the supreme method of dynamic machine balancing for every drum we produce. In this article, we will walk you through how it works, why it’s effective, and what benefits it brings you as our partners and customers.
Why Do We Choose Dynamic Machine Balancing?
Our Director, Thomas Heller, emphasizes that, “Even the smallest imbalance can become a big problem on the road. Precision and balance are the backbone of brake drum manufacturing – we make no compromises in getting it right.”
When it comes to static vs. dynamic balance, dynamic balancing brake drums proves to be more precise and reliable. Static methods can only address balance in one plane and often require manually attaching counterweights. Dynamic balancing, by contrast, uses computerized equipment to detect imbalance with high accuracy and then automatically perform corrections. The result is a brake drum balanced to very tight tolerances under conditions that mimic actual use.
At TBP Auto, we have invested in advanced dynamic balancing machines integrated into our production line to make sure every drum meets our strict balance criteria before it leaves the factory floor.
“In our facility, every brake drum gets spun up and fine-tuned. The machine can detect even a few grams of imbalance that a human might miss,” says Mr. Hay Nguyen, Quality Assurance Technician at TBP Auto. “By correcting it dynamically, we know the drum will run true when it’s installed on a truck. It’s satisfying to see the machine eliminate a slight wobble in seconds – that’s how we ensure quality every day.”
>>> Read more: Balancing Brake Drums: Why It Matters, Process, and Methods
Our Dynamic Balancing Process Step-by-Step
So, how exactly do we at TBP Auto implement our supreme dynamic balancing method? It’s a blend of high-tech machinery and careful workmanship.
Below, we will explain our step-by-step process, with actual visuals of one of our advanced vertical dynamic balancing machines in action.
Step 1: Mounting the Brake Drum

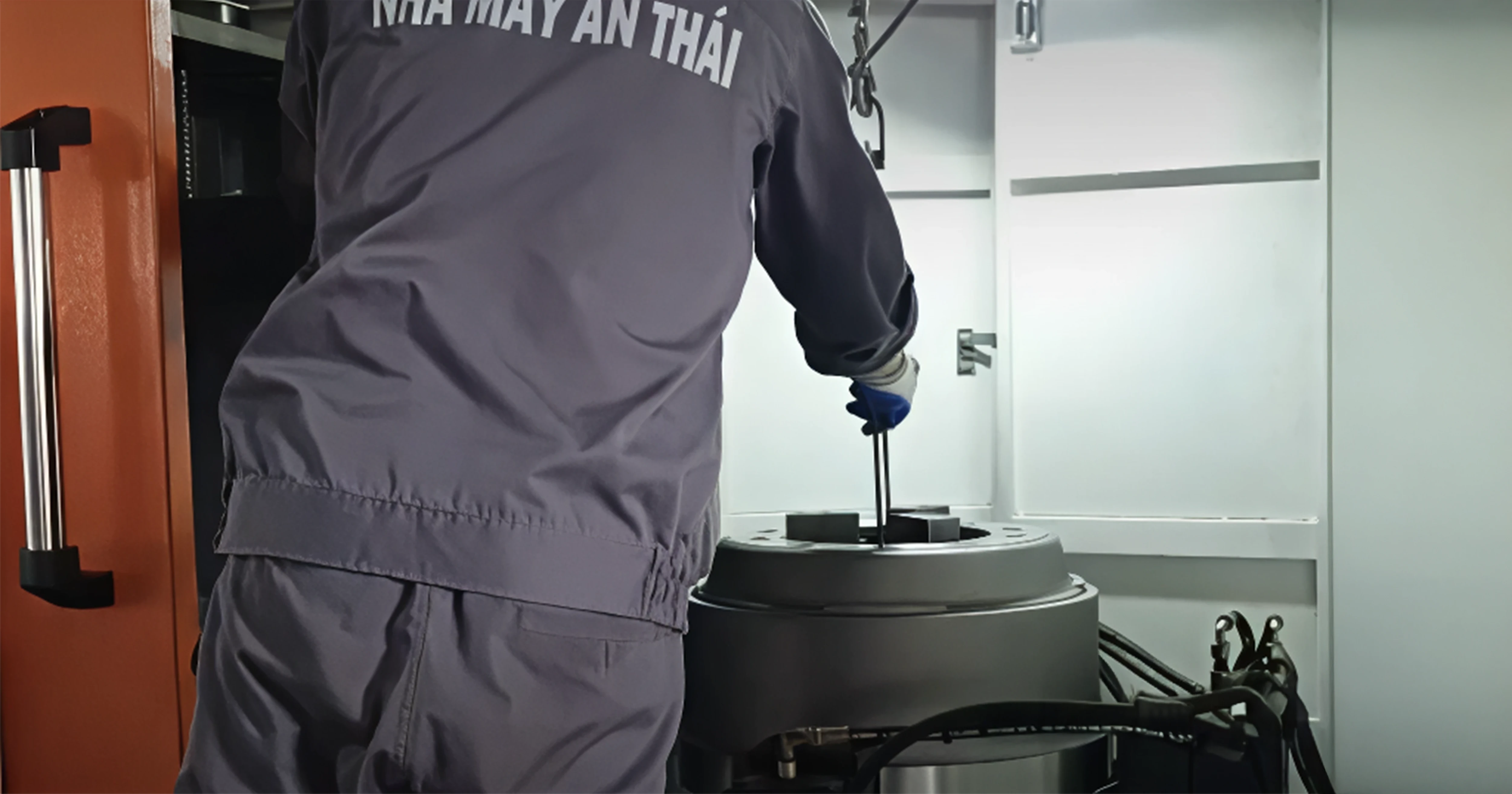

After a brake drum has been cast, machined to final dimensions, and passed initial quality checks, we mount it on our dynamic balancing machine. The machine securely clamps the drum in a vertical orientation (mimicking how it sits on a wheel hub) for accurate balancing.
Step 2: Spinning & Measurement
Next, the machine spins the brake drum at a specific speed. Sophisticated sensors measure any vibration or imbalance as the drum rotates. This step pinpoints where and how much imbalance exists. Essentially, the machine computes the heavy spot on the drum and the magnitude of correction needed.
Step 3: Precision Material Removal

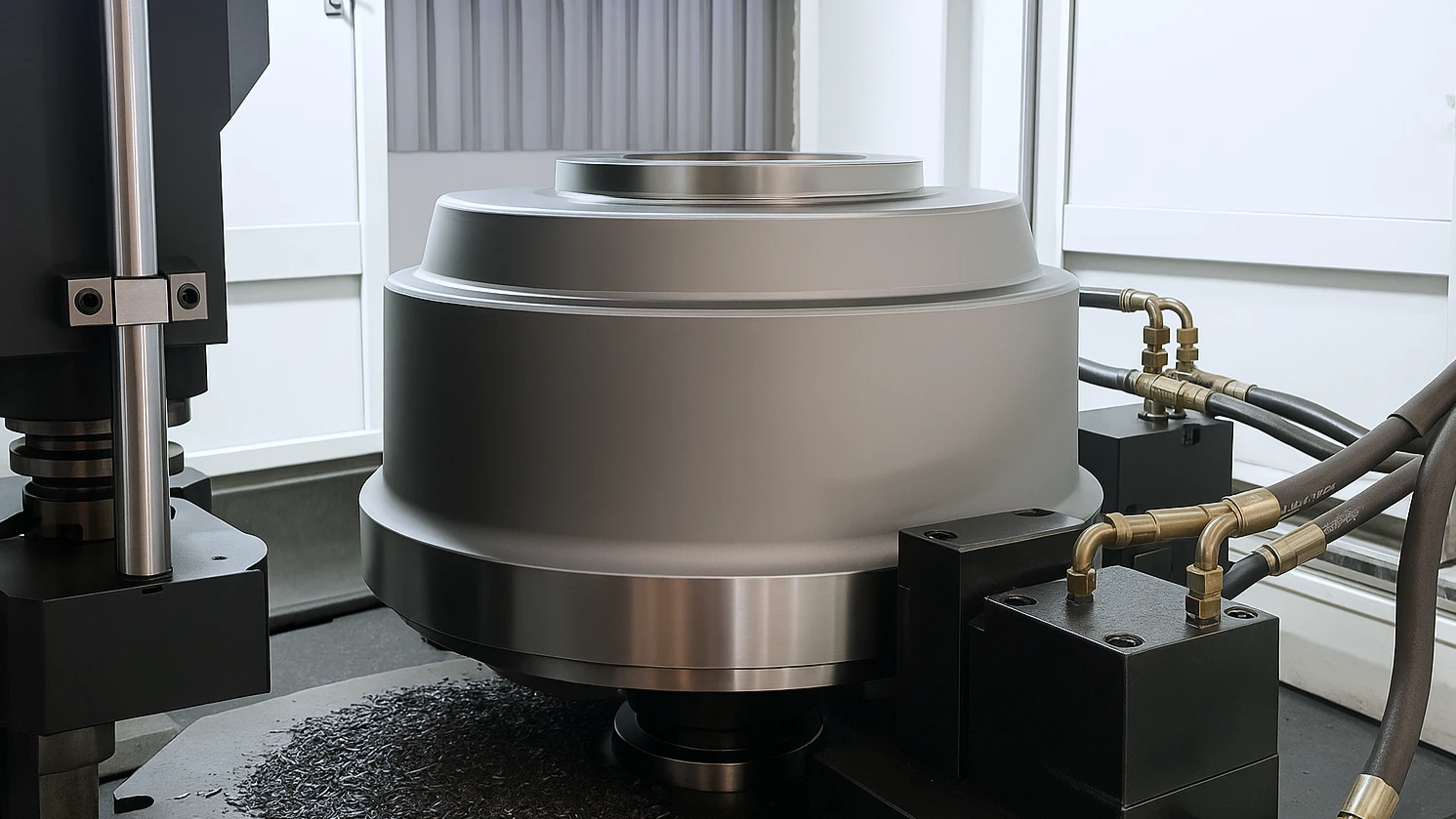

Once the imbalance is identified, an NC-controlled milling head precisely removes material at the indicated location based on real-time measurements. We do not rely on adding any weights – no metal clips or welded weights are attached (so nothing can fly off later).
Step 4: Verification Spin
After the cut, the machine spins the drum again to verify that the imbalance has been corrected. If the drum now rotates without detectable vibration (within our strict tolerance limits, which meet or exceed industry standards such as the 20 inch-ounce imbalance threshold common in heavy-duty drums), it passes the test. In the rare case it’s still slightly out, the machine will perform an additional small correction until the drum is well within spec.
Step 5: Quality Record
Each brake drum that passes the dynamic balance test is marked (and recorded in our system) as balanced. It then moves on to final inspection and finishing. We keep digital records of balance data for our drums as part of our quality assurance. This traceability means we can confidently stand by the balance of every drum we ship.

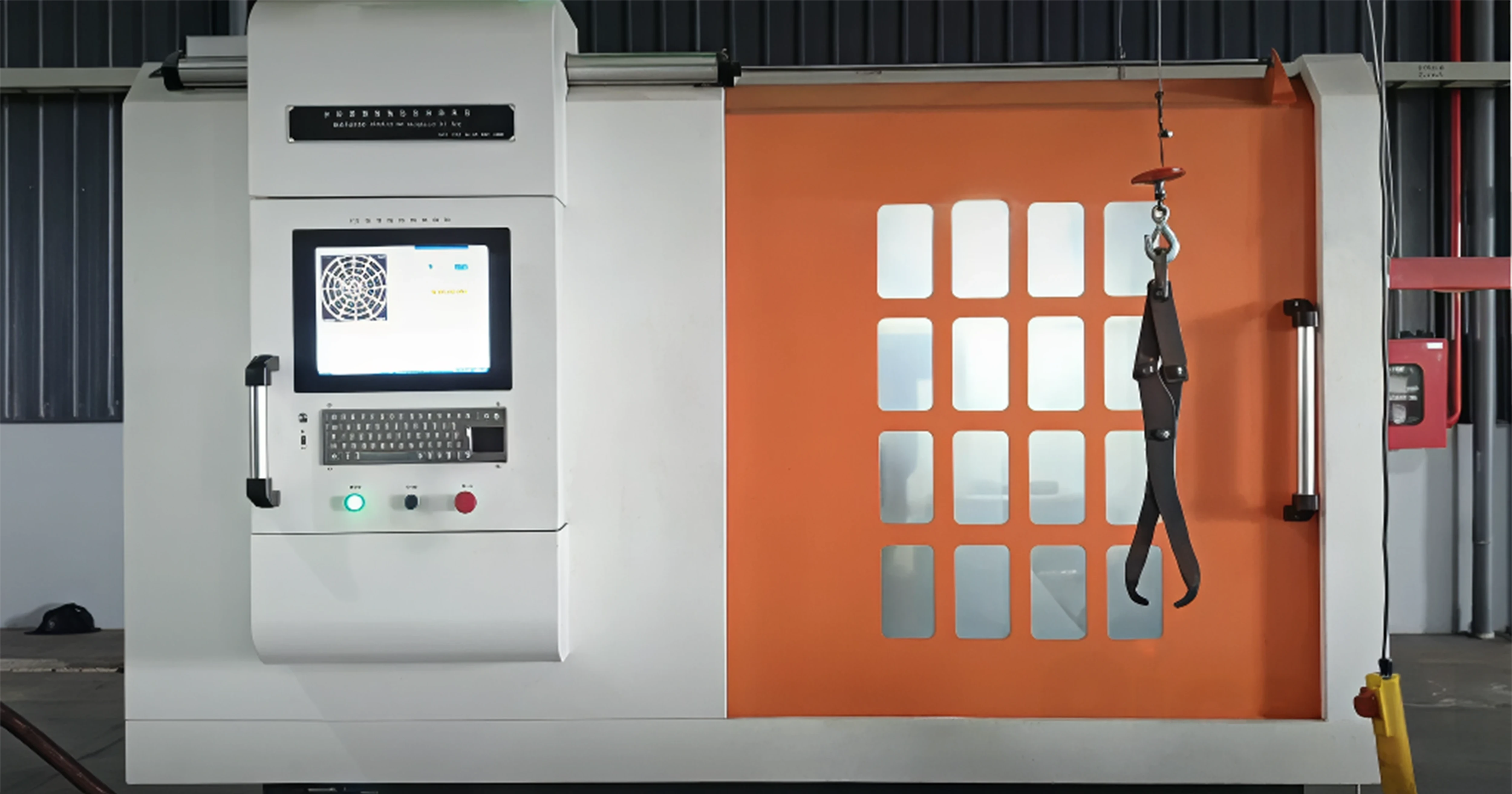

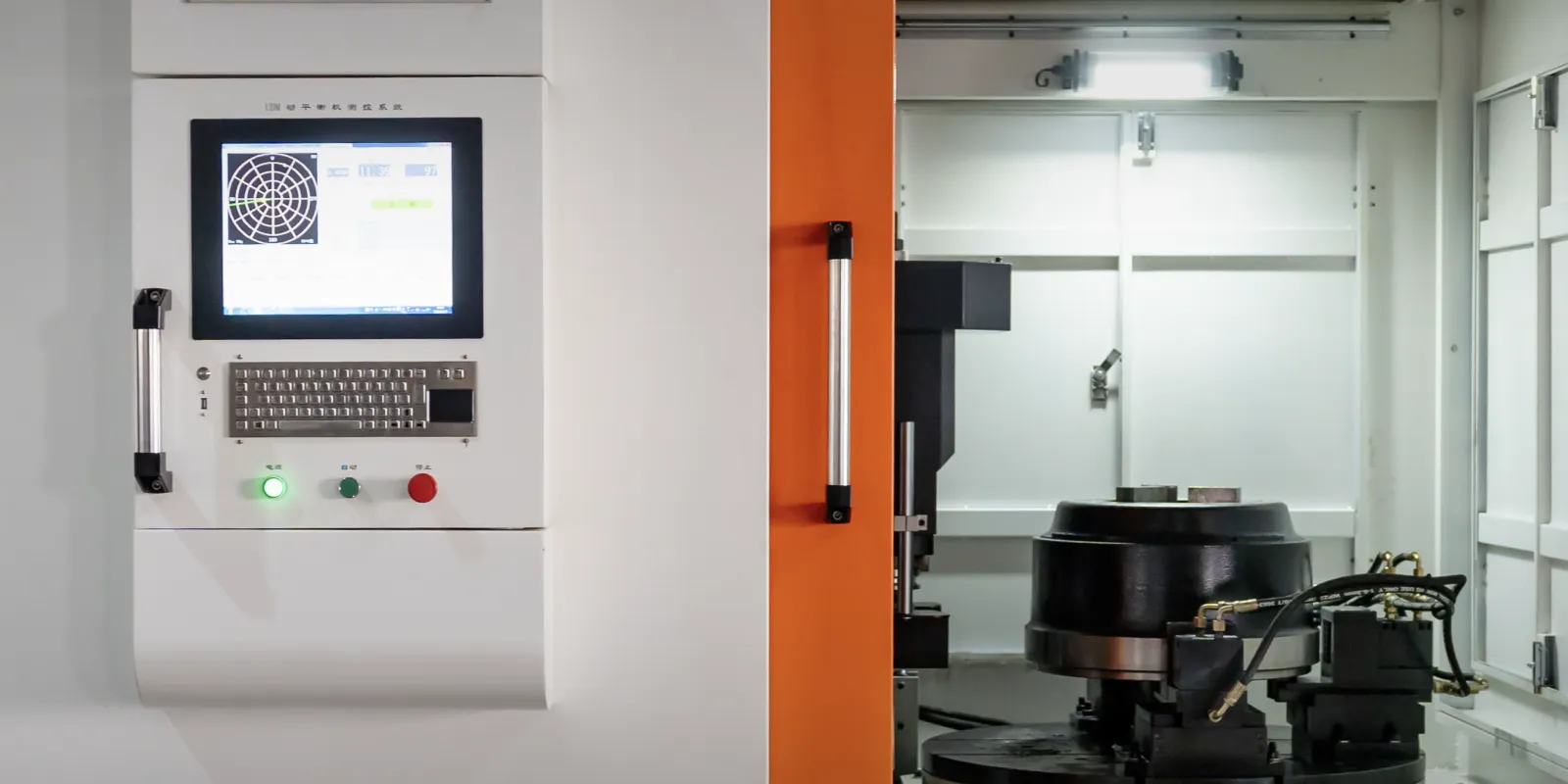

In these images, you can see a brake drum mounted on the machine; and inside, an NC-controlled milling head precisely removes material based on real-time measurements. Our technicians monitor the process via a touchscreen interface, but the operation is largely automated – ensuring consistency for every unit. With this equipment integrated into our production line, we ensure no drum leaves our factory without undergoing dynamic balancing as a final critical step.
“The balancing stage is where we fine-tune each drum to perfection,” notes Mr. Phong Dao, Production Supervisor at TBP Auto. “I’ve overseen traditional balancing methods in the past with welded weights, and there’s just no comparison. Our dynamic machine balancing is faster, more accurate, and it gives me peace of mind knowing each drum will perform flawlessly for our customers.”
Benefits of Our Dynamic Balancing Method
Using dynamic machine balancing for our brake drums isn’t just a matter of process – it delivers clear advantages to fleet operators, drivers, and anyone relying on the quality of our parts. Here are some key benefits of our approach:
Smoother, Safer Performance
A dynamically balanced drum minimizes vibration and brake shudder during operation. This means smoother braking and better driver comfort, especially important in large trucks that might otherwise feel brake pulsations. Reducing vibration also helps maintain consistent contact between the drum and brake shoes, contributing to more reliable stopping power – a safety win for everyone on the road.
No Welded Weights (Permanent Balance)
Traditionally, some manufacturers weld small weights onto heavy spots of a drum to balance it. Those can sometimes crack off or corrode over time, upsetting the balance later. We eliminate that risk completely. The balance is “built-in” and permanent on our brake drums. This also preserves the drum’s clean aesthetics and structural integrity – you’ll notice TBP Auto’s premium drums have smooth exteriors, rather than clunky weights.
Reduced Wear & Longer Life
When a drum is perfectly balanced, it wears more evenly and causes less stress on related components. Brake shoes press uniformly, tires and wheel bearings experience less eccentric force, and even suspension parts avoid extra strain. The result is longer service life for the entire brake system and potentially lower maintenance costs. Our customers report that our balanced drums help brake linings wear more evenly and reduce the frequency of maintenance intervals.
Consistent Quality through Automation
Because we use computer-controlled machines to balance drums, every single unit is held to the same high standard. There’s very little variability. This consistency is hard to achieve with manual methods. The automated dynamic balancing ensures each drum is balanced within tolerance – we don’t have “odd ones out.” For partners who purchase drums in volume, this means you can trust the uniform performance across all TBP Auto drums in your fleet or inventory.
Compliance with Stringent Standards
Our dynamic balancing process meets or exceeds industry standards for heavy-duty brake drum balance (such as the common 20 in-oz imbalance limit). In fact, we aim to balance drums to an even tighter spec whenever possible. This high level of precision is part of our commitment to quality. It also aligns with OEM requirements; if you’re using our drum as a replacement, you can be confident it matches or betters the balance quality of the original part.
In short, our dynamic machine balancing method contributes directly to the reliability, safety, and satisfaction that our brake drums deliver in the field.
>>> Read more: TBP-054.1640 Brake Drum Earns FMVSS 121 - Now Even Better
Our Commitment to Precision and Quality
Dynamic balancing is not just a technique we use – it exemplifies our broader commitment to precision engineering at TBP Auto. We approach every aspect of brake drum manufacturing with a mindset of “do it right, do it consistently.”
“Quality is built on the details that no one sees, as much as the ones they do see.” - Mr. Thomas Heller, Director of TBP Auto
Beyond machinery and equipment, TBP Auto has invested in training our technicians on dynamic balance, both theory and practice. Dynamic balancing, in that sense, also serves as a feedback mechanism to our foundry and machine shop: a well-made drum will require minimal correction.
Not only that, all of our non-tech departments are also educated on the importance of this step in producing the best brake drums. This means our whole team understands not just the button-pressing, but also the why behind it.
The balance of a brake drum isn’t obvious to the naked eye, but it profoundly affects performance. That’s why we’ve made dynamic machine balancing a cornerstone of our production. We are confident in stating that our brake drums roll out of the factory ready to perform smoothly from the first mile to the last.
Conclusion
TBP Auto’s supreme method of dynamic machine balancing brake drums is about combining technology with principle: balancing each drum to perfection because it’s the right thing to do for safety and performance.

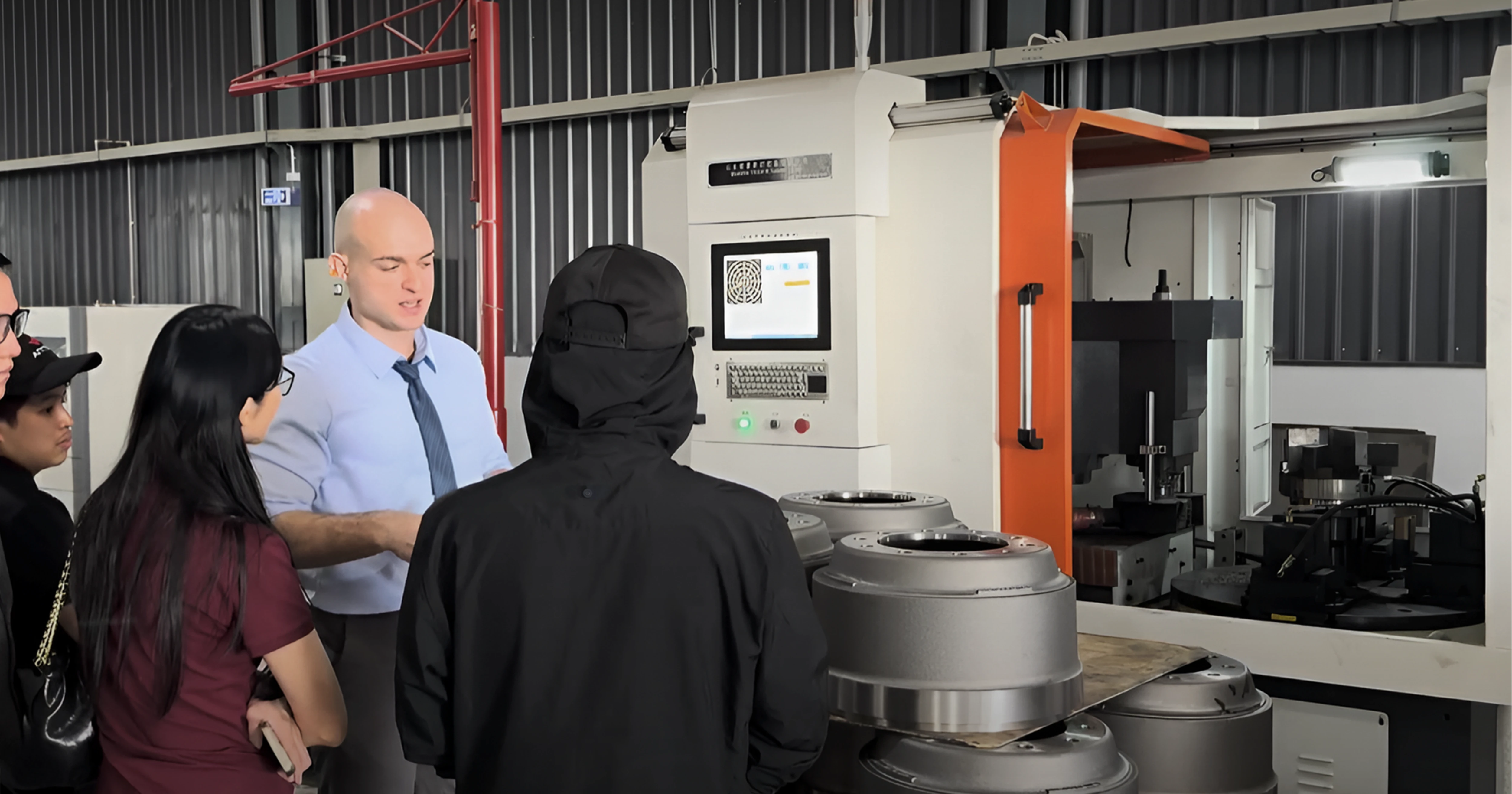

We invite partners, customers, and industry peers to reach out with any questions or even visit our facility to see this process in action. It’s one of the many ways we ensure that every TBP Auto brake drum earns your trust through technical excellence and attention to detail.
