MADE IN VIETNAM
TBP-0540022

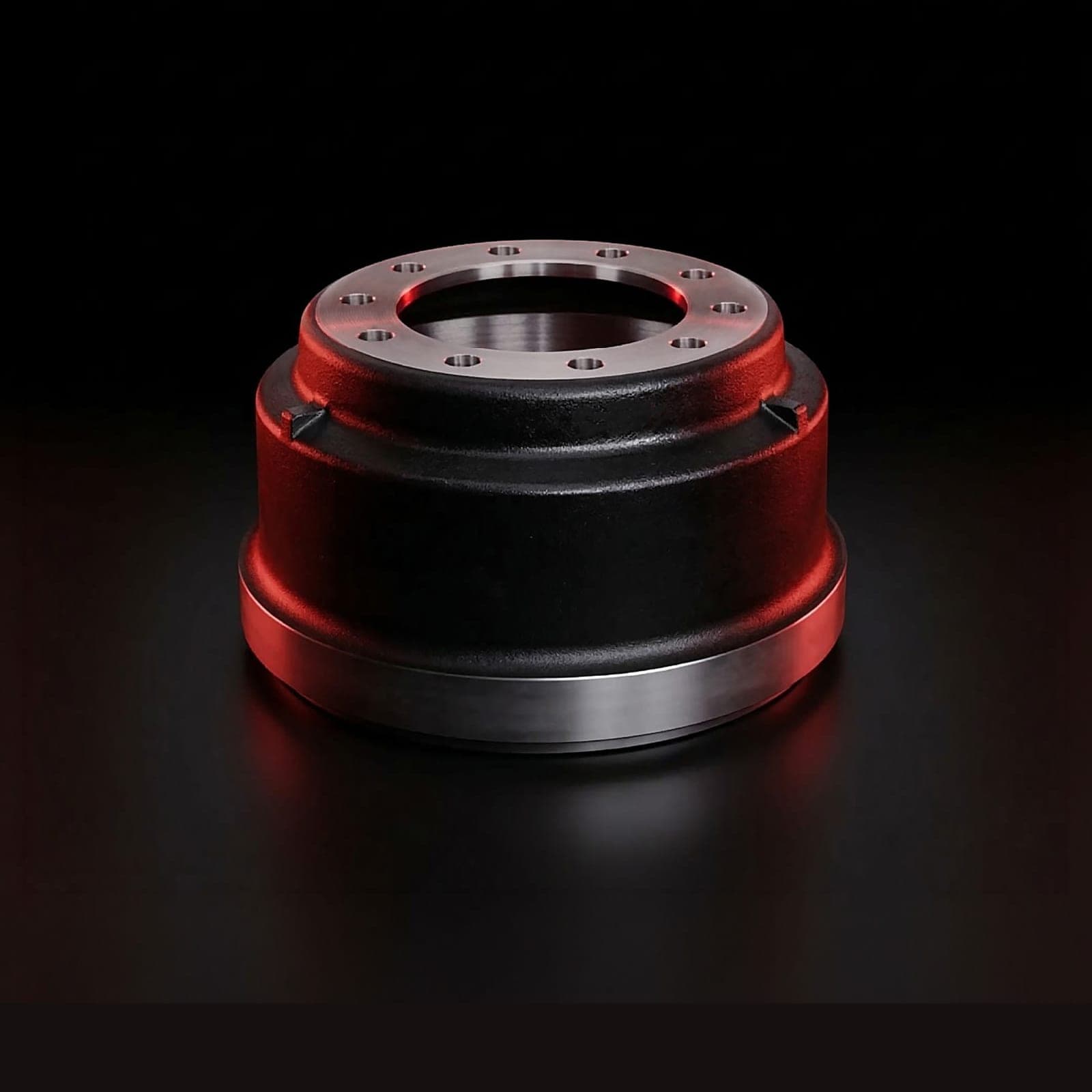

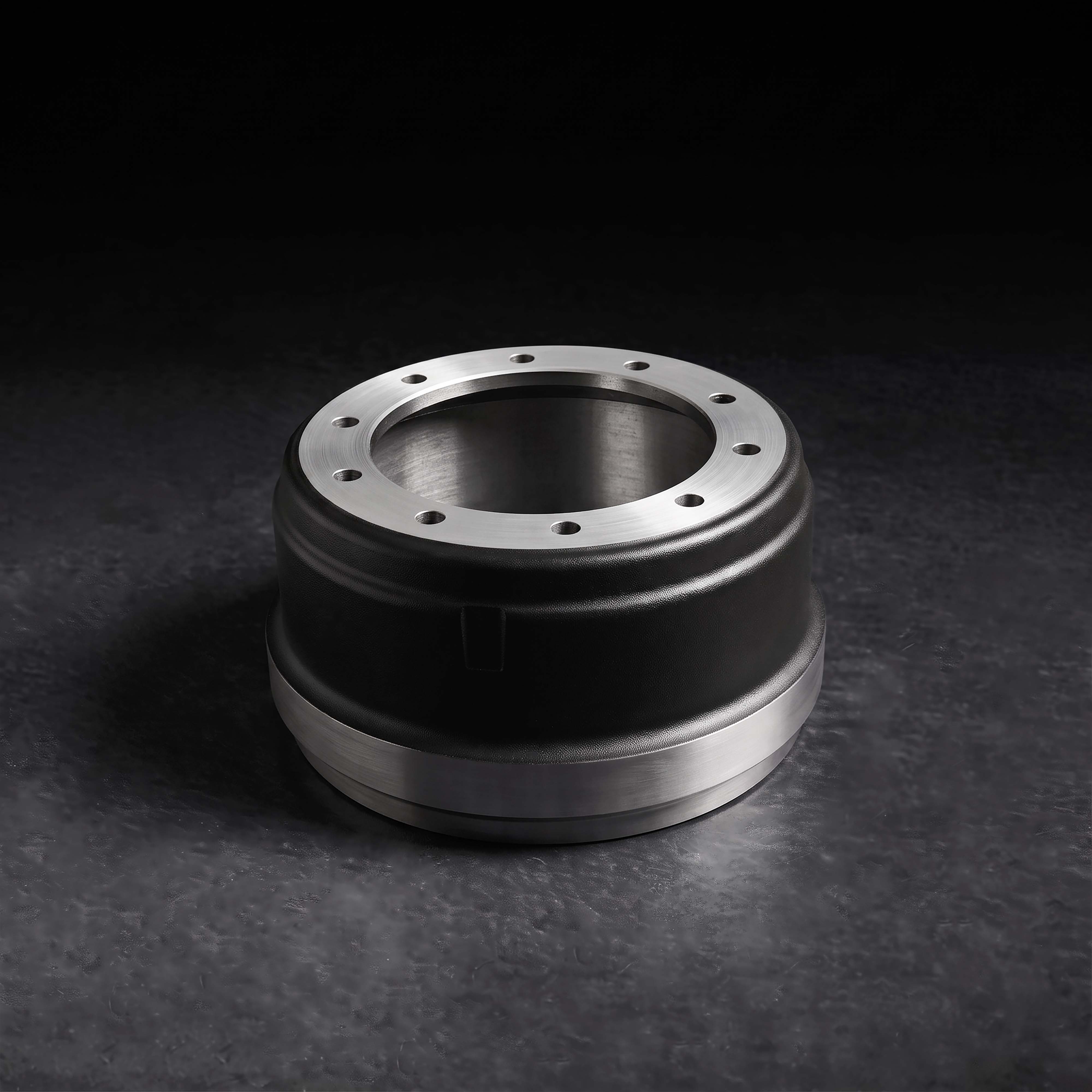

16.5″ × 7″ Brake Drum
INTERCHANGE WITH: 3602R1
Specifically designed for Fuwa axles, this brake drum ensures maximum durability and optimal braking performance. 16.5″ × 7″ outboard-mount drum built from high-quality cast iron for reliable and safe operation on Fuwa-equipped semi-trailers and heavy trucks.
16.5″DIAMETER
7″WIDTH
109 lbWEIGHT
G3500GRAY IRON
Technical data sheet
TBP-0540022 · REV 03/2026DIMENSIONS
Overall depth7 in
Brake surface dia16.62 in
Pilot diameter8.75 in
Bolt circle · holes11.25 in · 10
MaterialG3500 (ASTM A48 CL35 eq)
Hardness187–241 HB
Weight109 lb
FITMENTS
- Fuwa semi-trailer axles (all configurations)
- Chinese-spec 10-stud semi-trailer hubs
- CIMC / SINOTRUK trailer axle series
- Dongfeng trailer axle applications
Why this drum
Direct OEM replacement for Fuwa axle drum 3602R1
16.5″ bore, compatible with standard American-spec lining
CNC-machined brake surface for even lining contact
Vietnam origin, zero anti-dumping duty to the US
